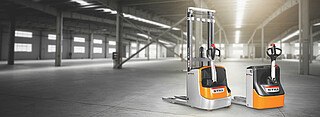

High lift pallet truck EXV 10C-16C

Elevate stacking with ease

  • Capacità di carico 1600 kg
  • Sollevamento nominale 5466 mm
  • Velocità 6 km/h

The EXV high lift pallet truck with the unique OptiSpeed tiller is quite something. The speed of this manually guided warehouse assistant is automatically adapted to the distance between the operator and the truck. Note the unique tiller ergonomics: a lot of thought has gone into the positioning of the controls. They allow intuitive one-handed operation for all operators, regardless of hand size and whether left or right. And the LED display on the tiller head allows the operator to keep an eye on all relevant truck information. As if that weren't enough, the truck's stability on slopes and its ability to stop automatically when the tiller arm is released are particularly impressive. Sophisticated lowering damping, which gently slows the lowering speed just before ground contact, protects goods during storage. With the EXV, goods can be stored more tightly than ever before and retrieved more easily. With its high residual load capacity and exceptional manoeuvrability, this compact truck is unbeatable when it comes to moving large quantities of goods quickly and safely in confined spaces with a manual truck, whether in the pre-storage area or on shelving.

NUOVO
Richiedi un'offerta
A NOLEGGIO
Richiedi un'offerta di noleggio
USATO
Richiedi un'offerta

Richiesta relativa a: EXV 10C-16C

Si prega di compilare il modulo sottostante. Vi risponderemo il prima possibile.

This site is protected by Friendly Captcha and the Friendly Captcha Privacy Policy applies.

High. Hub. Hooray. That's how uncomplicated efficiency can be.

May we introduce: Your new best friend in the camp. Smart and adaptable, compact and powerful, safe and efficient. The new EXV 10C-16C will immediately captivate you - and its extremely small turning circle. No wonder. After all, it has a lot to offer with its flexible application options, intuitive handling with the innovative drawbar and its smart safety features. It lifts up to 1.6 tonnes effortlessly and, with the optional wheel arm extension, is happy to transport two pallets at once.

As changeable as a chameleon →
One blink of an eye is enough... →
No risk, more fun →

As changeable as a chameleon

Configure your EXV 10C-16C exactly how you need it. Uneven floors? The optional initial stroke compensates for this wonderfully. Little space and narrow driveways? With a lithium-ion battery, your EXV is so compact and manoeuvrable that no space is too tight for it. Its rounded forks also make threading into the pallets a breeze, and with the optional wheel arm extension, you can transport two pallets at once. Only chameleon-like changing the color, he can't (yet) do that...

One blink of an eye is enough...

... to record all relevant vehicle information on the large LED display in the tiller head. It is not for nothing that the innovative tiller head concept was awarded the coveted IFOY Award.

No risk, more fun

Do you need any more proof that safety and efficiency go together beautifully? Here it is: Thanks to smart safety features such as Dynamic Load Control, you can always lift exactly as heavy and high as your EXV 10C-16C can handle, it will go anywhere but over your feet and with its stable 4-wheel chassis it will always have a safe and stable footing - even in the tightest of spaces and in the most curvy corners.

1-2-Cha-Cha-Cha

As easy as a dance - that's how working with the EXV 10C-16C can be described. Loose and intuitively managed, elegantly twisted and seemingly effortlessly lifted. Even in the smallest dance area. Its unique tiller ergonomics, compactness and flexible drive programs ensure easy one-handed operation, impressive manoeuvrability and maximum manoeuvrability. You like to take a spin right away...

Have your hands full? →
Drawbar is child's play →

Have your hands full?

Not with the EXV! After all, one hand is all it takes to operate it smoothly, precisely and ergonomically, even in the smallest of spaces. And by the way, this is completely independent of the size of your hand and whether you have your left or right hand free. Your smart warehouse assistant also takes care of the speed itself: Thanks to the OptiSpeed drawbar, it always adapts its travel speed to the distance to the operator.

Drawbar is child's play

Today like this, tomorrow like that. With its different drive modes, the EXV 10C-16C is ideally equipped for a wide range of applications - and with the creep mode and the OptiSpeed drawbar, it can be manoeuvred safely and precisely even in the tightest of spaces.

In no time, everything is ready!

This makes work a pleasure. Agile, efficient, energetic and highly available, the EXV 10C-16C ensures maximum storage compaction, thrilling pallet handling and effortless precision.

Turning a little into a lot →

Turning a little into a lot

This is perfect use of space: Thanks to its compact dimensions coupled with its high residual load capacity, the EXV 10C-16C can store and retrieve an unbeatable amount in the smallest of spaces. Not to mention the option of double-decker transport.


EXV 10C-16C in dettaglio

I fattori “Simply Efficient”: prestazioni elevate per migliorare la produttività

Simply easy

Flexible, intuitive operation of all control elements on the tiller head
with one hand, without the need to change grip, naturally for both left- and right-handed operators

Reliable availability
thanks to large colour display with battery status display

Optimal ergonomics and reduced physical strain for the operator
thanks to electric driving, lifting and lowering functions

Clear view through the mast to the fork tips
facilitates hassle-free pallet handling

Unbeatable handling performance:
powerful motor, high residual load capacity and responsive control elements



Simply powerful

Power meets safety:
the four-wheel chassis ensures outstanding stability and effective performance

Reliable excellent performance
thanks to the powerful yet low- maintenance AC motor

New level of precision and safety for user and load
thanks to the responsive proportional valve control

Optimal availability, low-maintenance and high performance
thanks to the optional lithium-ion technology

Smooth and precise electrical steering

Simply safe

Maximum driver safety
thanks to the low-entry truck frame and load backrests

Initial lift ensures stable and low-vibration driving performance,
even if there are slight gradients or unevenness in the floor

Safety for man and machine:
OptiSpeed tiller and automatic stop mechanism when the tiller is released

Safe manoeuvring even in restricted space
thanks to creep speed mode

Information on the lift height at a glance
– on the coloured load capacity display

Estimate the load correctly:
Dynamic Load Control can be used to estimate the load and the corresponding maximum lift height

Simply flexible

Precision even in confined spaces
thanks to compact dimensions

Well-equipped for a wide range of applications
with different driving programmes

Ready for use at all times:
the battery can be charged and interim charged flexibly from any location without the need for a fixed charging station

Simply connected

Compact information:
all relevant truck information is available at a glance in the STILL neXXt fleet web application.

Innovative STILL FleetManager keeps driver and truck safe:
operator management and shock detection as well as damage and cost minimisation thanks to access protection

Optimisation of the goods flow
thanks to straightforward connection to existing material flow management systems via MMS provision



Tecnologia STILL Li-Ion

Il sistema di alimentazione perfettamente armonizzato per ridurre i costi operativi ed aumentare la disponibilità dei carrelli.

Maggiori informazioni sulla tecnologia STILL Li-Ion

Applicazioni

LED-Display

A quick glance at the LED display is all it takes to have all the relevant vehicle information clearly at hand.

Touch-Display

Everything in view, all the time: Optional touch display with a range of language-independent symbols shows you all of the important functions at a glance.

Ground clearance

Optional initial lift gives greater ground clearance on uneven floors.

Easy threading into the pallets

Fast and precise operation thanks to rounded forks.

Compact vehicle dimensions

Extremely compact and manoeuvrable thanks to optionally integrated lithium-ion battery.

Maximum safety

More safety even in confined environments thanks to active foot protection.

Maximum safety

More safety even in confined spaces thanks to passive foot protection.

Extension of the forks

Efficient transport of two pallets thanks to optional wheel arm extension.

Richiesta relativa a: EXV 10C-16C

Si prega di compilare il modulo sottostante. Vi risponderemo il prima possibile.

This site is protected by Friendly Captcha and the Friendly Captcha Privacy Policy applies.

Opzioni di equipaggiamento

Per affinare tutti i sensi: vi offriamo un’ampia gamma di sistemi e funzioni di assistenza alla guida intelligenti, che semplificheranno la vostra attività quotidiana con una guida più sicura, comoda, efficiente e senza sforzi in qualsiasi situazione.

Griglia reggicarico

La griglia reggicarico conferisce stabilità alle merci poste sul retro del carrello a forca garantendone il trasporto sicuro da A a B.

Maggiori informazioni

Rilevamento degli urti (con FleetManager 4.x)

Quando il rilevamento degli urti viene utilizzato con il FleetManager, se le vibrazioni superano un certo livello, il carico sarà registrato come insolito e queste informazioni saranno condivise con il responsabile della flotta. Oltre alle informazioni sugli urti, queste notifiche possono comprendere anche informazioni sulla velocità di guida, l'ora, il carrello ed il conducente.

Maggiori informazioni

Autorizzazione all'accesso (con Fleet Manager 4.x)

Controllo dell'accesso perfettamente integrato nel carrello con diversi tipi di autorizzazione all'accesso per uno o più carrelli. Con FleetManager 4.x siete liberi di scegliere il tipo di autorizzazione all'accesso per uno o più carrelli: chip, tessera FleetManager, ID personale di impianto o PIN. Grazie alla funzione smart di auto-logout, i carrelli vengono disattivati automaticamente dopo un periodo di tempo liberamente scelto - anche questo aumenta la sicurezza.

Autorizzazione all'accesso (senza FleetManager 4.x) con PIN

I sistemi di accesso con codice (PIN) rappresentano un modo facile per prevenire l'uso non autorizzato del carrello. Il carrello può essere azionato rapidamente e facilmente, inserendo semplicemente il codice PIN. Ciò permette all'utente di limitare l'autorizzazione all'accesso a persone o a gruppi di persone specifiche. È possibile configurare fino a dieci codici PIN. Maggiori informazioni

Barra OptiSpeed

Lavora in tutte le angolazioni

In base all'angolo della barra, la sterzata della barra OptiSpeed garantisce automaticamente che la velocità massima di guida si adatti all'angolazione. Se l'angolo diventa più acuto, il carrello decelera automaticamente. La sterzata della barra aiuta a garantire movimenti sicuri anche in piccoli spazi.
L'operatore è quindi in grado di manovrare facilmente il veicolo e di lavorare in modo ergonomico.

Maggiori informazioni
Highlights

Curve Speed Control

Regolazione automatica della velocità in curva

Il limitatore di velocità controllato da un angolo di sterzata riduce la possibilità di danneggiare le merci adeguandosi a una velocità in curva idonea. Questa funzione di assistenza è disponibile per diversi carrelli elevatori e dispositivi tecnologici del magazzino e regola automaticamente la velocità di guida in base all'angolo di sterzata. In altre parole, il conducente non deve preoccuparsi della velocità quando fa una curva. Il carrello decelera automaticamente nel modo più preciso necessario per l'operatore affinchè questi guidi con la maggior sicurezza e rapidità possibili.

Maggiori informazioni

Dynamic Load Control (DLC 3)

Apprezzerete le ottime prestazioni

Gestione sicura e precisa del carico in base all'altezza di sollevamento del carico - Il Dynamic Load Control è stato sviluppato per facilitare il lavoro degli operatori dei carrelli elevatori ad alto sollevamento EXV e FXV STILL. Il sistema di assistenza smart è in grado di valutare con estrema precisione le capacità di carico e i pesi. È disponibile in diversi livelli di estensione. Mediante la visualizzazione sull'unità di controllo, il livello massimo di estensione DLC 3 mostra all'operatore il peso attuale del carico, l'altezza massima di sollevamento possibile con questo carico e l'altezza di sollevamento attuale. Quest'ultima viene misurata mediante un sensore a ultrasuoni. Quando l'utente si avvicina all'altezza massima di sollevamento, il sensore emette un segnale di allarme. Il processo di sollevamento si blocca automaticamente prima di superare il sollevamento massimo.

Maggiori informazioni

Programmi di guida

Il programma di guida giusto per tutte le esigenze: l'operatore può scegliere tra tre programmi di guida definiti e due programmi da configurare liberamente in tre modalità operative diverse: Blue-Q, modalità normale e sprint. I programmi di guida possono essere scelti in base alla situazione per raggiungere il massimo della prestazione e dell'efficienza energetica. Pilota automatico intelligente: la modalità Blue-Q (tasto blu) del carrello elevatore viene attivata premendo un pulsante. L'ottimizzazione intelligente della guida fa risparmiare energia esattamente laddove non è influenzata dal processo lavorativo. Fino al 10% di risparmio energetico in base al profilo di utilizzo e all'equipaggiamento del carrello elevatore.

Maggiori informazioni

Parapiede

Per evitare che le ruote schiaccino i piedi - una linguetta di gomma può essere applicata sui veicoli pedonali per la protezione dei piedi. È anche disponibile un parapiede opzionale con fascia di contatto che garantisce l'arresto del carrello al contatto con il piede.

Maggiori informazioni

Display della capacità di carico

Stabilità in sicurezza, sempre: il display opzionale della capacità di carico mostra all'utente l'attuale altezza di sollevamento e la capacità di carico residua associata. Le capacità di carico e le altezze di sollevamente vengono visualizzate sui cartelli colorati attaccati direttamente al montante.

Maggiori informazioni

Scheda tecnica

Modello
Portata massima (kg)
Max. altezza di afferraggio (mm)
Velocità di marcia (km/h)
Tensione batteria (V)
EXV 10(i)C / Li-Ion 1.000 1.912 6.0 24
EXV 12(i)C / Li-Ion 1.200 4.386 6.0 24
EXV 14(i)C / Li-Ion 1.400 5.466 6.0 24
EXV 16(i)C / Li-Ion 1.600 5.466 6.0 24
